Create a flar over a ssh tunnel (nfs port forwarding)

• Overview

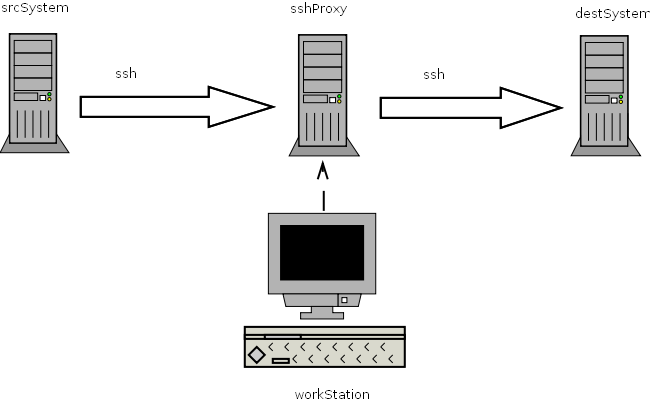

  Small how-to create a flar archive over a ssh tunnel on solaris.



• Logon to the ssh proxy server


  staf@workstation:~$ ssh -R 3049:destSystem:2049 staf@sshproxy

• Logon to the srcSystem



  [swagemak@sshproxy]$ ssh -R 3049:127.0.0.1:3049 root@destSystem


• Mount the backup filesystem on the srcHost



  		[ROOT@scrSystem] # mount -o port=3049 nfs://localhost/backup /mnt


• Verify that the backup file system is mounted



  		# df -h
  		Filesystem             size   used  avail capacity  Mounted on
  		/dev/md/dsk/d20        8.8G   1.7G   8.1G    18%    /
  		/dev/md/dsk/d24         12G   2.9G   8.8G    26%    /usr
  		/proc                    0K     0K     0K     0%    /proc
  		mnttab                   0K     0K     0K     0%    /etc/mnttab
  		fd                       0K     0K     0K     0%    /dev/fd
  		/dev/md/dsk/d25         12G   6.0G   5.7G    52%    /var
  		swap                   5.3G    24K   5.3G     1%    /var/run
  		swap                   512M   369M   143M    73%    /tmp
  		/dev/md/dsk/d23         12G   2.6G   9.2G    22%    /opt
  		nfs://localhost/backup
                          		33G    15G    18G    47%    /mnt




• Create the flar




  		[ROOT@srcSystem] # cd /mnt
  		[ROOT@srcSystem] /mnt # touch boe
  		[ROOT@srcSystem] /mnt # flarcreate -S -n srcSystem srcSystem.flar
  		Full Flash
  		Checking integrity...
  		Integrity OK.
  		Running precreation scripts...
  		Precreation scripts done.
  		Creating the archive...
